Cold Rolling Mill Specifications.

Five rolling mill models with strip width, thickness, speed, force and power values.

Product range

Compare technical parameters.

Strip width, minimum strip thickness, speed, force, motor power and roll diameter.

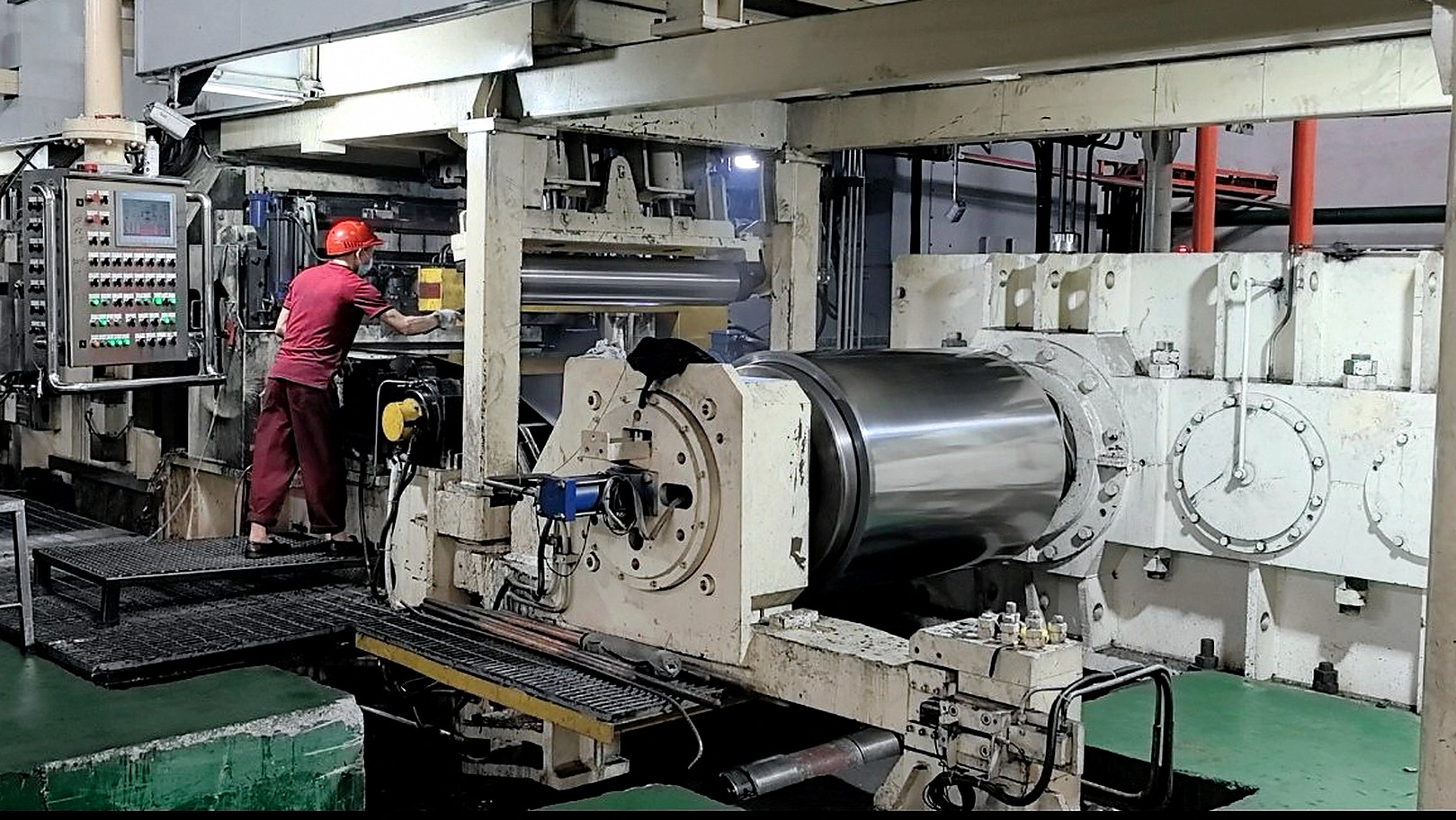

4-high rolling mill line

4-High450-1450 model

4-High Rolling Mill

450-1450 mm strip width, 0.25 mm minimum strip thickness, 25 ton maximum coil weight.

800 m/min1200 kN4500 kW180 mm

6-high rolling mill line

6-High1450 model

6-High Rolling Mill

550-1450 mm strip width, 0.03 mm minimum strip thickness, 28 ton maximum coil weight.

300-1500 m/min1200 kN500-12000 kW100-250 mm

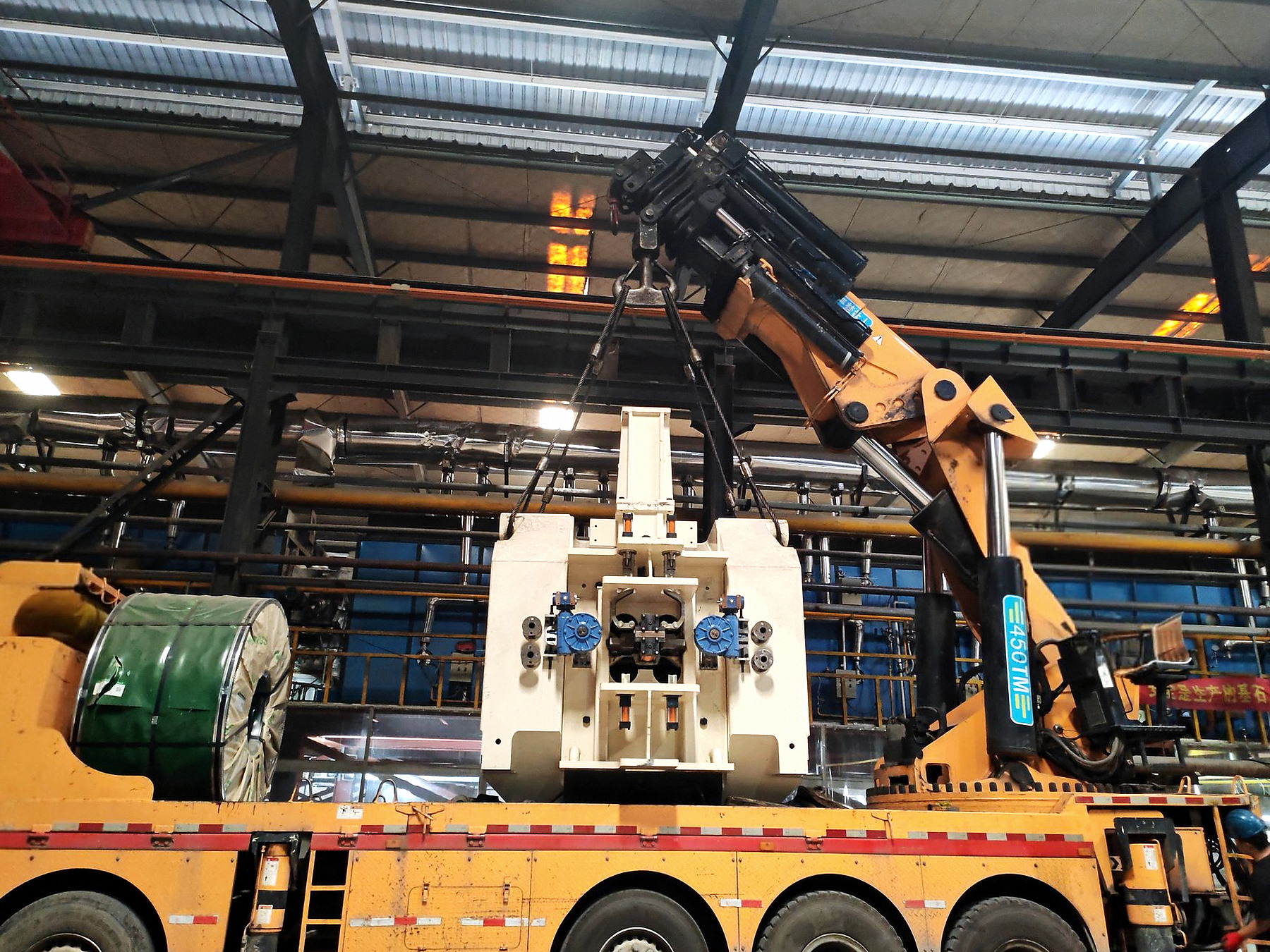

Offset 8-high rolling mill front view

Offset 8-High1450 model

Offset 8-High Rolling Mill

350-1450 mm strip width, 0.03 mm minimum strip thickness, 28 ton maximum coil weight.

0-800 m/min1800 kN0-8500 kW60-145 mm

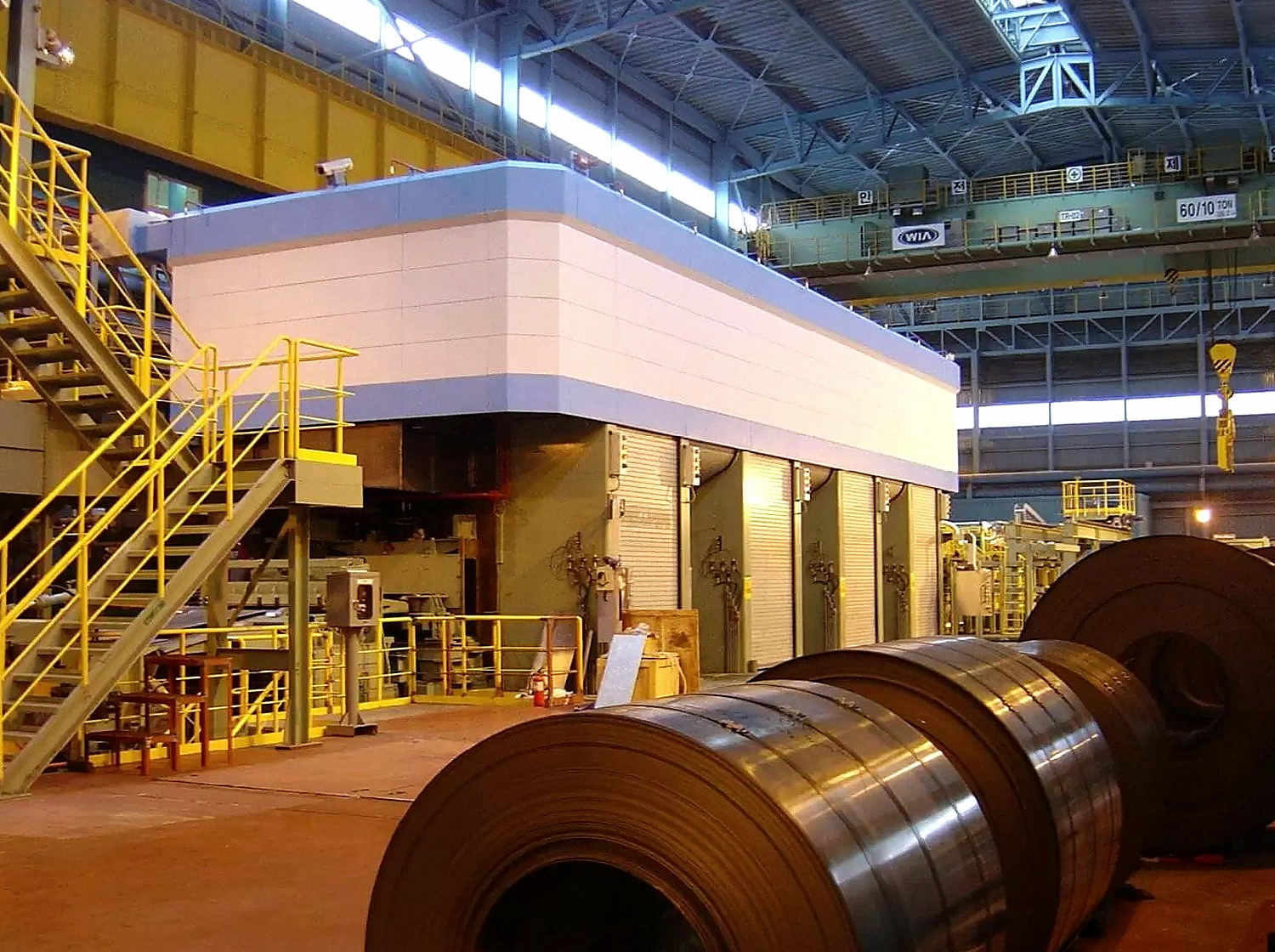

18-high rolling mill production line

18-High1450 model

18-High Rolling Mill

450-1450 mm strip width, 0.03 mm minimum strip thickness, 0-28 ton maximum coil weight.

0-800 m/min1200 kN500-12000 kW90 mm

20-high Sendzimir-type rolling mill

20-High1450 model

20-High Sendzimir-Type Rolling Mill

350-1780 mm strip width, 0.03 mm minimum strip thickness, 28 ton maximum coil weight.

800 m/min1200 kN350-12000 kW63 mm

Comparison

Core parameter table.

Model	Strip width	Min strip thickness	Speed	Rolling force	Coil weight	Motor power	Roll diameter
4-High Rolling Mill	450-1450 mm	0.25 mm	800 m/min	1200 kN	25 ton	4500 kW	180 mm
6-High Rolling Mill	550-1450 mm	0.03 mm	300-1500 m/min	1200 kN	28 ton	500-12000 kW	100-250 mm
Offset 8-High Rolling Mill	350-1450 mm	0.03 mm	0-800 m/min	1800 kN	28 ton	0-8500 kW	60-145 mm
18-High Rolling Mill	450-1450 mm	0.03 mm	0-800 m/min	1200 kN	0-28 ton	500-12000 kW	90 mm
20-High Sendzimir-Type Rolling Mill	350-1780 mm	0.03 mm	800 m/min	1200 kN	28 ton	350-12000 kW	63 mm

Need model selection support?

Send strip width, entry thickness, exit thickness, coil weight and material grade.
